LNL WiFi Smart Light Switch, Alexa Smart Light Switch with Remote Control and Timer, Compatible with Alexa, Google Assistant and IFTTT, Easy Installation, Neutral Wire Required (1 Way 2 Gang)

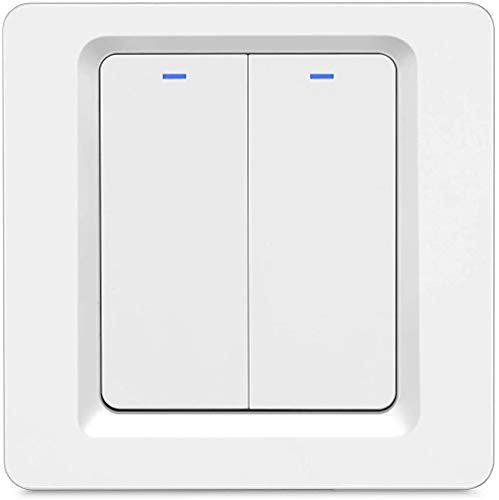

LNL WiFi Smart Light Switch

Use your existing WiFi home network to enable wireless control of your lighting anytime, anywhere, without the need for a hub. This can easily replace the conventional switches directly. Then you can start controlling your lighting on your mobile phone through the ‘Smart Life’ APP.

INSTALLATION GUIDE:

1, Separate the upper and lower parts from the switch by screwdriver.
2, Prepare to install wiring
Attention: Neutral wire is required.
1)Live Wire connects “L” terminal
2)Bulb Wire connects “L1, L2, L3” terminal
3)Neutral Wire connects “N” terminal
3, Fix the switch onto wall
1)Put the switch lower parts into switch box in the wall
2)Mount the two side screws
3)Install the upper top case
4)Cover the upper top case into switch
5)Turn on electricity, and then LED light will be flashed quickly for pairing
4, Smart Life APP
1)Download or scan the QR Code and install Smart Life APP
2)Register and Login Smart Life APP
3)Connect the switch with power
4)Press the power button on the switch 6-10 seconds until the red light blinks quickly to reset the switch
5)Open APP and tap “+” and select “wall switch” to add.
6)Please make sure power on the device and blue light(Wi-Fi indicator) rapidly blinks as 2 time per second
7)Select Wi-Fi network, input Wi-Fi password, and confirm that will prompt connection
8)Once connected APP will prompt the connection
9)Rename the device such as “Bedroom”, “Kitchen” or “meeting room” and so on
10)Then tap “confirm”, then tap “Done” under Rename, if you want to share, choose “Share with Family”.

SPECIFICATION:

Input voltage：100-240VAC 50/60Hz
Power rating: 2*600W
Rated current:10A
Size: 86*86*42mm
Life Span:100000times
Operation Temperature: -20℃～+50℃
Plastic material: ABS+PC
Fire-protection rating: 94-V0

【Neutral Wire Check】Neutral wire (A BLUE Wire) check is required. Most old houses do not have a neutral wire, if you are not sure about this. Please send us pictures of the back box before purchase. Important reminder: Our product does not include a neutral wire.
【Remote Control】: Remote control your lights at anytime anywhere. Get smart switches installed in your room and start to enjoy remote control without limits. Also supports device sharing function, your family’s members to remote control it too. Disabled and elderly people-friendly, keep them away from risks and accident.
【Voice Control】: Enjoy the hands-free convenience of controlling the lights in your home with your voice via Amazon Alexa and Google Assistant; perfect for times when your hands are full or entering a dark room.

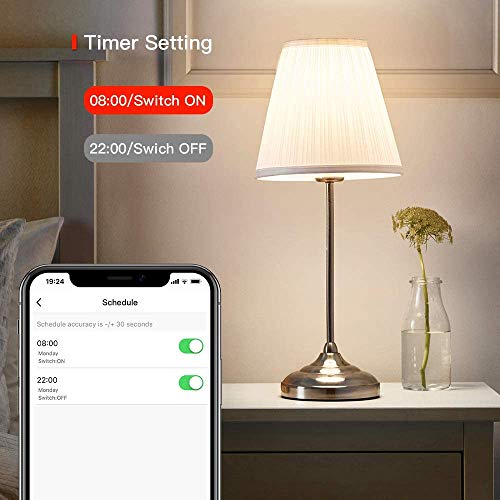

【Timer Function】: Timer Countdown Scene function, make your switches turn On/Off automatically at the certain moments that you set.
【Easy Installation】: Our illustrated user manual will guide you step by step, No worries. NOTE: This device requires Neutral Wire at home, Works in 2.4GHz WiFi Band. No hub requirement. Important reminder: Our product does not include capacitor accessories and does not require capacitors for installation.
